Set up RAID

RAID Level

RAID (Redundant Array of Independent Disks) creates a single usable data disk, where several physical disks are combined into an array for better speed and fault tolerance. Zenlayer supports the most common RAID types: 0, 1, 5, and 10.

AID LevelsNumber of DisksFault ToleranceSpace EfficiencyRead & Write PerformanceReliability

RAID 0

n ≧ 2

None

100%

Fast

Low

RAID 1

n ≧ 2

n/2 disk failure

50%

Low

High

RAID 5

n ≧ 3

1 disk failure

(n-1)/n

Medium

Medium

RAID 10

n ≧ 4

n/2 disk failure

50%

Fast

High

Application scenarios explanation:

  • RAID 0 RAID 0 does not include any redundancy (or backups). That means if one of your disks fails, you lose all the data on that disk. It is primarily used in applications that require high performance and are able to tolerate lower reliability, such as storing temporary files or files that you have backed up elsewhere.

  • RAID 1 If you have at least two disks, using RAID 1 will duplicate your data and store a copy on each disk. With high reliability, RAID 1 is usually used for important server or data base storage.

  • RAID 5: RAID 5 is a balanced solution with decent processing power as well as some storage space set aside for the redundancies. It is best for storing critical data and running applications that need decent speed and efficiency.

  • RAID 10: With high security and relatively high performance, combined the advantages of RAID 0 and RAID 1, RAID 10 is an ideal solution except for the cost. It is best for running applications or hosting servers that need to be up 24/7.

Prerequisites

  • You should have at least 2 drives to set up RAID.

  • Instances with models of LCC, LCE and LCG do not support RAID setup.

  • RAID Quick Setup is used for disks with the same storage space, Custom Setup for disks with different storage space.

  • If you have more than 4 disks, using RAID 10 instead of RAID 1 in RAID Quick Setup, because RAID 1 needs only 2 disks and the other two will be wasted.

Set up RAID

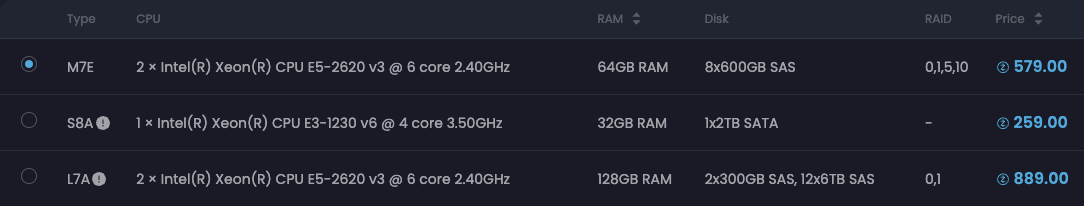

After selecting your instance specification, check the Disk and RAID columns.

With only 1 disk, the RAID setup is unavailable.

With more than 2 disks:

  • If the disks have different storage space, choose Custom Setup.

    Select desired disks to set up different levels.

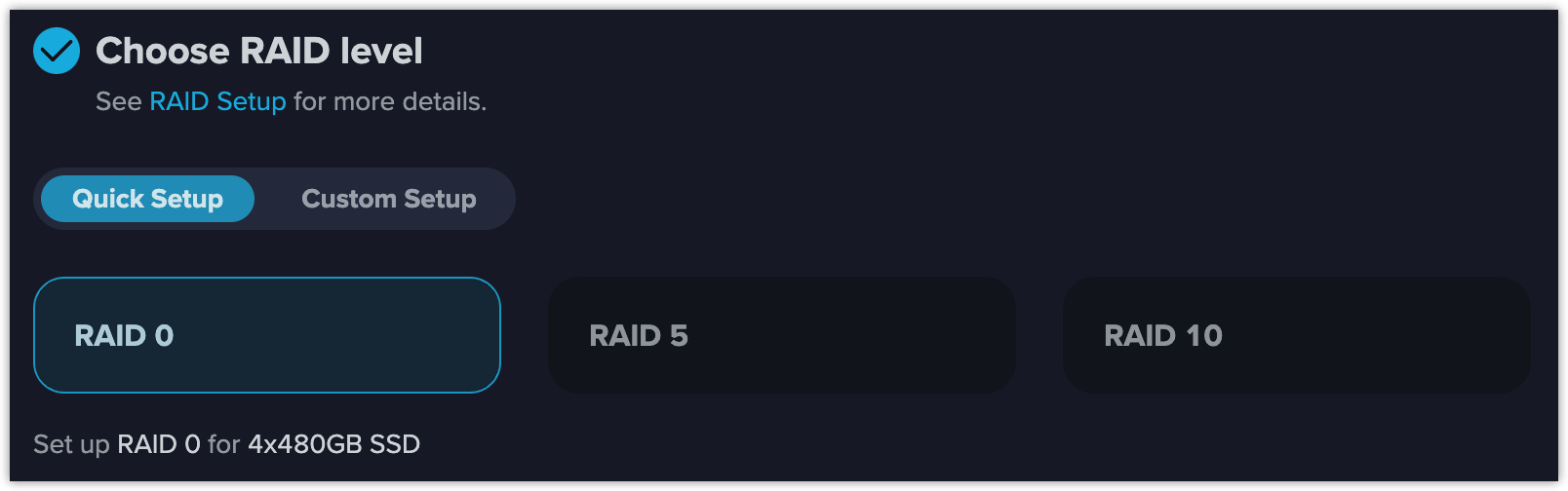

  • If the disks have the same storage space, choose Quick Setup

    • Disk number = 2, choose RAID 0 or RAID 1

    • Disk number = 3, choose RAID 0 or RAID 5

    • Disk number ≧ 4 and is even, choose RAID 0, RAID 5 or RAID 10
