Configure Routing Information

If you add access points like data centers, public clouds or virtual edge, you need to configure routing protocols to achieve network communication.

Prerequisites

• If you add a VPC, you don't need to configure the routing information. Go to Bandwidth Configuration directly.

• If you add a virtual edge and enable HA, only BGP routing is supported.

• If you have a small network, you can choose static routing. If you have a big network and your devices support Border Gateway Protocol (BGP), we recommend using BGP to take care of network segment changes.

BGP Routing

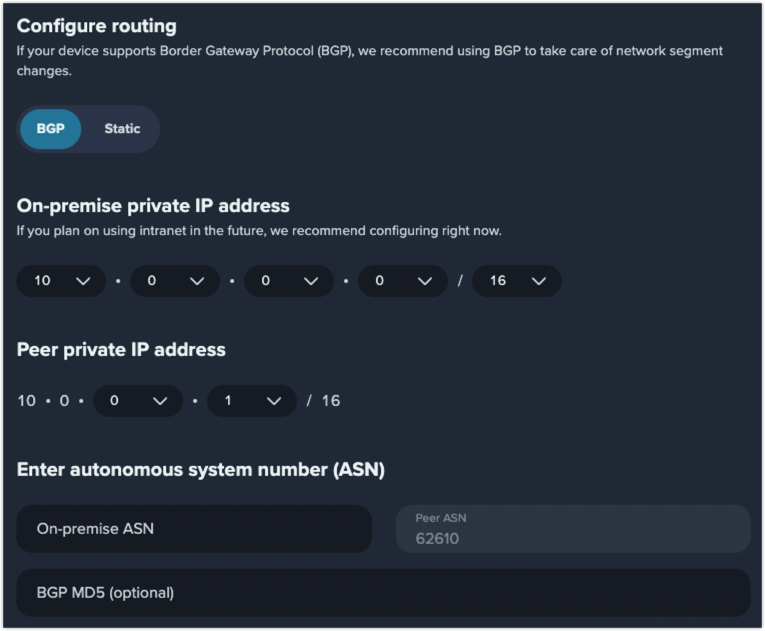

BGP Routing Configuration

BGP (border gateway protocol) is usually used to maintain complex networks that contain many routers. BGP divides an intranet into groups of routers, or AS (automated systems), which have trusted routes between them. You must define the AS number on the routers in your network and configure at least one group that includes at least one peer. BGP supports MD5 (message-digest algorithm 5) to secure messages.

Static Routing

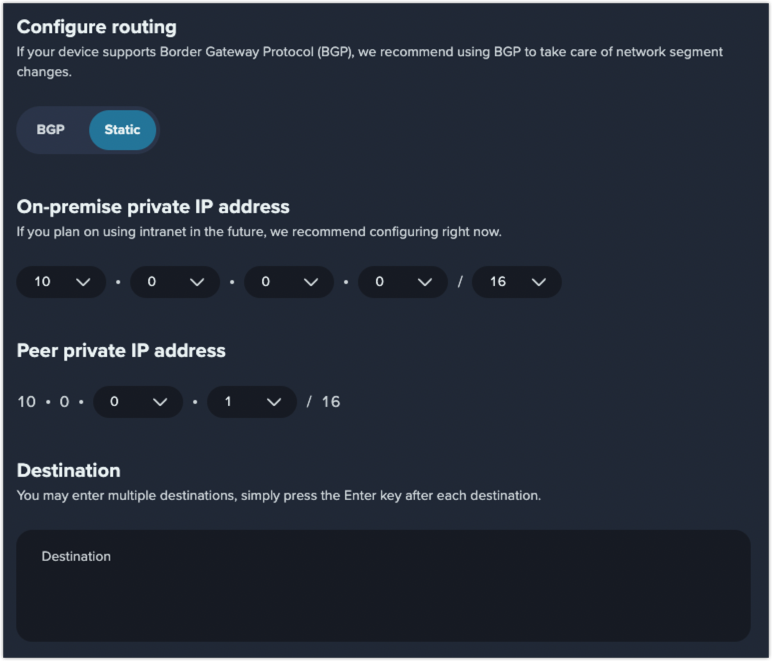

Static Routing Configuration

Static routing is generally used in smaller networks that contain only a couple of routers, or when security is an issue. Each static router must be configured and maintained separately.

• On-premise private IP address: the private IP configured on your data center/public cloud/virtual edge access point.

• Peer private IP address: the private IP configured on Zenlayer backbone POP.

• On-premise ASN: the ASN of your data center/public cloud/virtual edge access point. Only available for BGP configuration.

• Peer ASN: Zenlayer ASN. 62610 by default and cannot be changed. Only available for BGP configuration.

• BGP MD5 (optional): BGP authentication key.Only available for BGP configuration.
