# Select a Public Cloud as Access Point

The following configurations are applicable to public cloud connections. What differs between providers is which side initiates the connection.

Amazon Web Service, Tencent Cloud, Google Cloud, Alibaba Cloud, Azure Cloud, Oracle Cloud, Huawei Cloud, BytePlus Cloud, and Volcengine connection are supported for now. More public cloud providers will be supported soon.

## Three access processes

What you do on zenConsole is much the same for every provider. What differs is **which side initiates the connection, and where the identifier comes from**:

* **Process 1 · Zenlayer pushes** — AWS, Alibaba Cloud, Huawei Cloud, BytePlus Cloud, and Volcengine.\
  You enter the cloud account identifier on zenConsole and place the order. As a partner of that cloud, Zenlayer pushes the connection to your cloud account; you **accept** it on the cloud console, then create the virtual interface or virtual border router and establish BGP peering.
* **Process 2 · Key from the cloud** — Google Cloud, Azure Cloud, and Oracle Cloud.\
  You first obtain the connection key on the cloud platform — the **pairing key** for Google Cloud, the **service key** (s-key) for Azure, the resource **OCID** for Oracle Cloud — and enter it on zenConsole. For Google Cloud and Azure the nearest region is matched from the key, so you do not select a region.
* **Process 3 · You push** — Tencent Cloud.\
  After creating the connection on zenConsole, take the **connection provider ID** and the **shared tunnel ID** from the connection details, create a shared dedicated tunnel on Tencent Cloud, and associate it with your global VPC. Zenlayer verifies the details and accepts the connection automatically.

<figure><img src="https://3201622183-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9X3FDdkCL2HzhbPpPMFt%2Fuploads%2Fgit-blob-8c6600e7c9c636a0690152942869806ed8f30571%2Fpublic-cloud-access-flow.svg?alt=media" alt=""><figcaption><p>Three public cloud access processes</p></figcaption></figure>

## Procedures

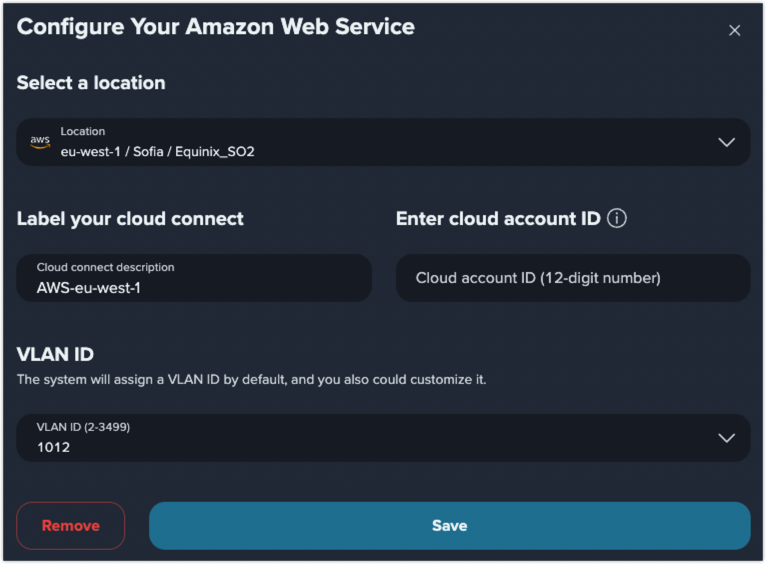

1. Select your cloud service provider.
2. Select the location closest to your public cloud infrastructure for the best network performance.\
   Google Cloud and Azure skip this step — the region is matched from the key you enter.
3. Label your cloud connect for identification.
4. Enter the identifier or the key that provider requires, as listed in **Configuration by provider** below.
5. Set the VLAN ID. The system assigns one by default, and you can also choose your own. Data is transmitted in the corresponding VLAN.

{% hint style="info" %} <mark style="color:blue;">**Note**</mark>

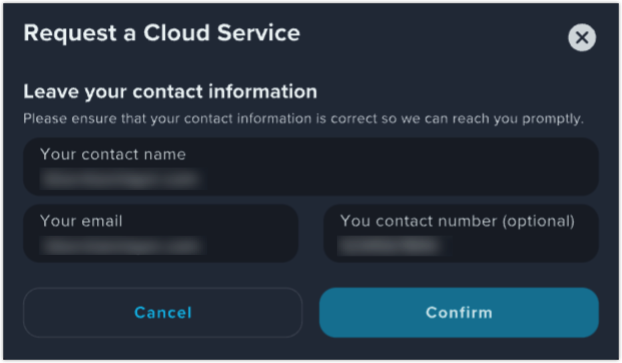

* <mark style="color:blue;">Some AWS, Alibaba Cloud, and Azure Cloud regions require a cloud service request first, to activate the cloud service in that region.</mark>
* <mark style="color:blue;">If every location is too far from you, contact Zenlayer Support to create a new cloud connect.</mark>
* <mark style="color:blue;">If your public cloud provider is not supported on zenConsole yet, contact Zenlayer Support.</mark>
  {% endhint %}

## Configuration by provider

| Provider       | Flow                           | Enter on zenConsole      | VLAN ID range | Watch out for                                                      |
| -------------- | ------------------------------ | ------------------------ | ------------- | ------------------------------------------------------------------ |

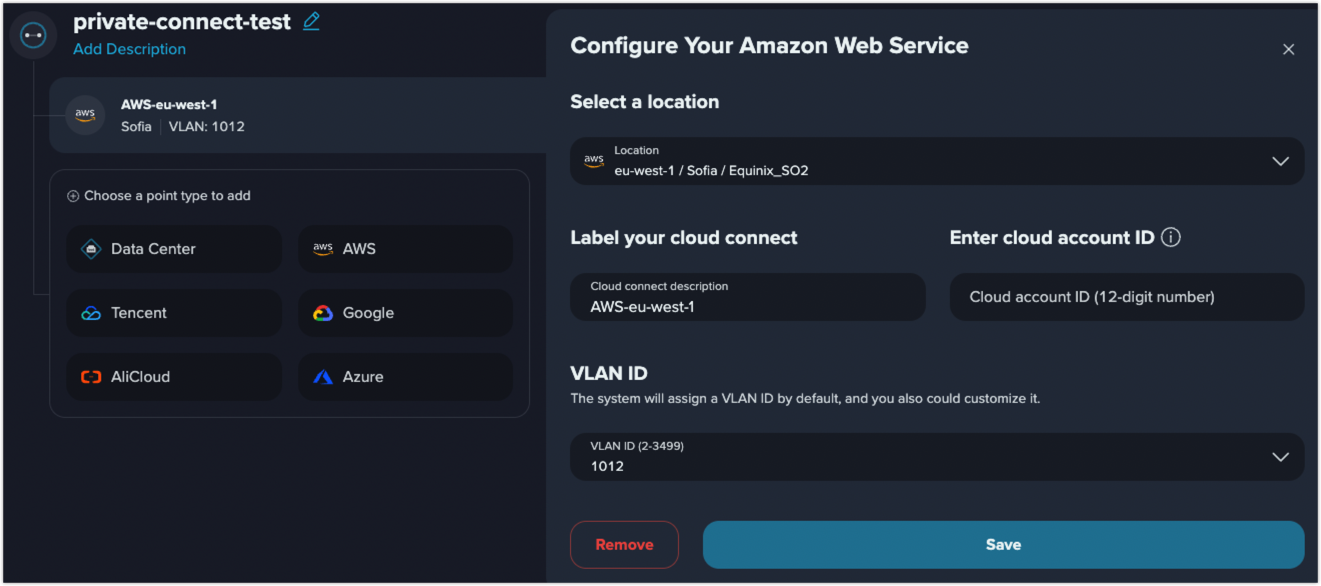

| AWS            | Process 1 · Zenlayer pushes    | Cloud account ID         | 2–3499        | Some regions need a cloud service request first                    |

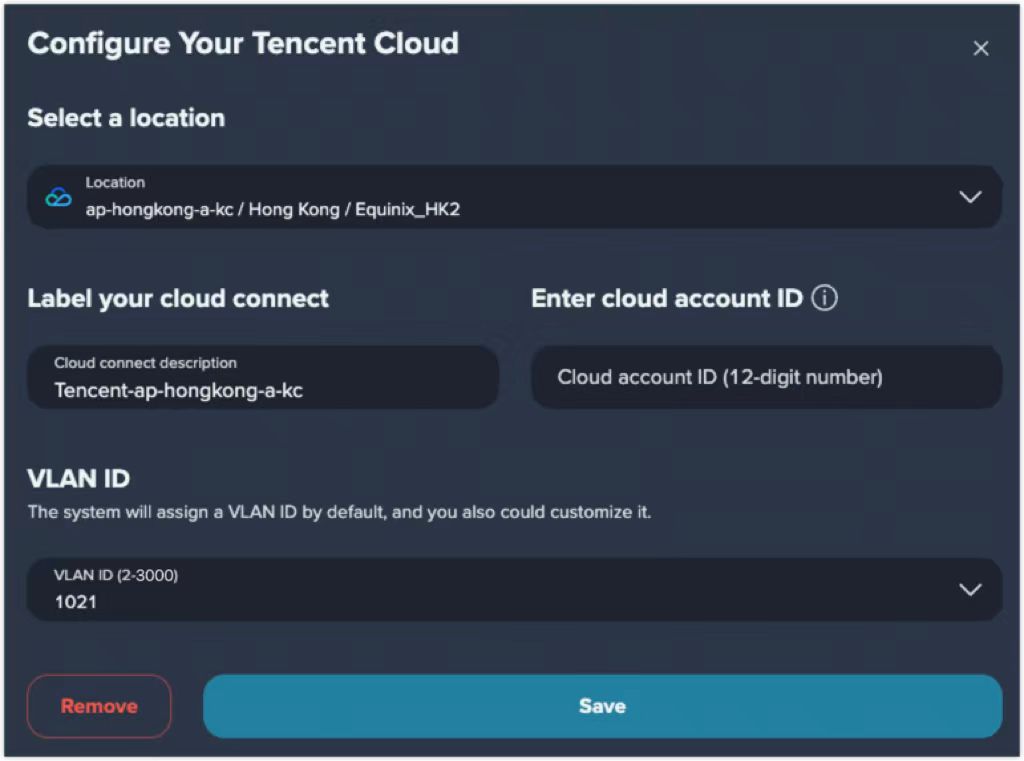

| Tencent Cloud  | Process 3 · You push           | Cloud account ID         | 2–3000        | Create the shared dedicated tunnel on Tencent Cloud after ordering |
| Google Cloud   | Process 2 · Key from the cloud | Pairing key              | 2–3499        | Some Google Cloud regions do not support interconnect              |

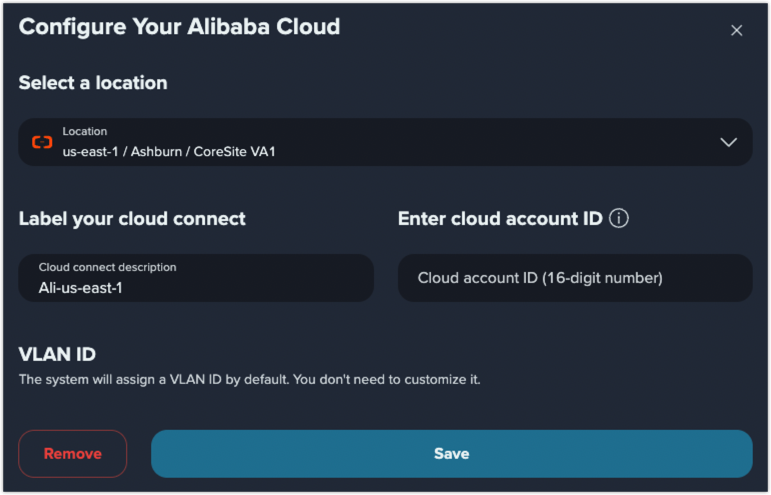

| Alibaba Cloud  | Process 1 · Zenlayer pushes    | Cloud account ID         | 2–3499        | Some regions need a cloud service request first                    |
| Azure Cloud    | Process 2 · Key from the cloud | Service key (s-key)      | 2–3499        | Some regions need a cloud service request first                    |
| Oracle Cloud   | Process 2 · Key from the cloud | Resource OCID            | 2–3499        | The OCID exists only after you create the resource on Oracle Cloud |

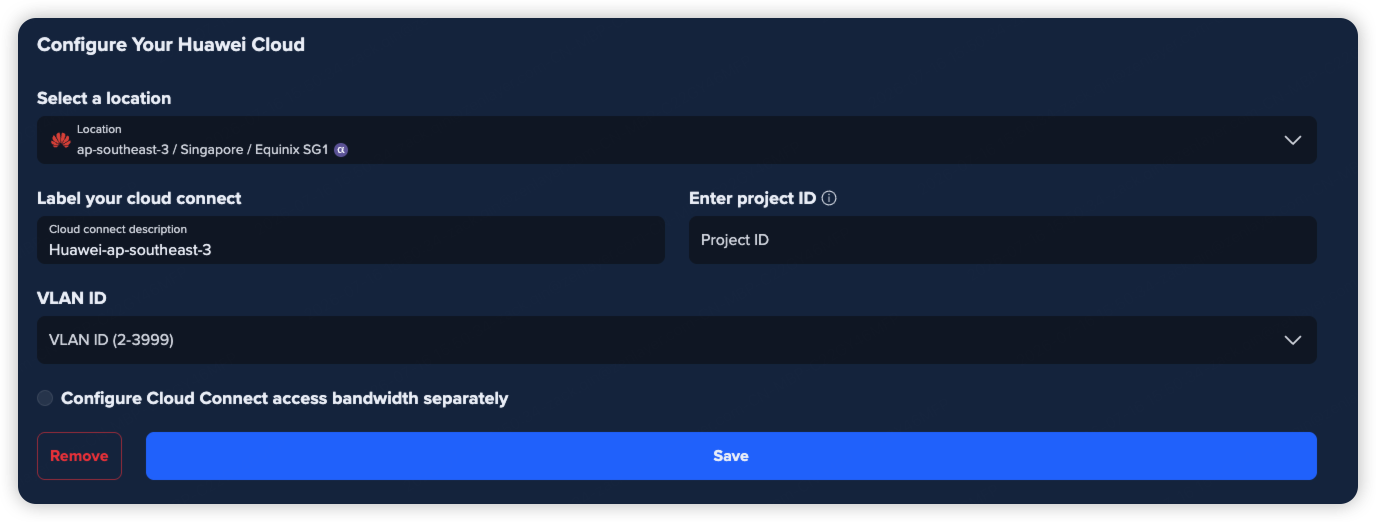

| Huawei Cloud   | Process 1 · Zenlayer pushes    | Project ID               | 2–3999        | —                                                                  |

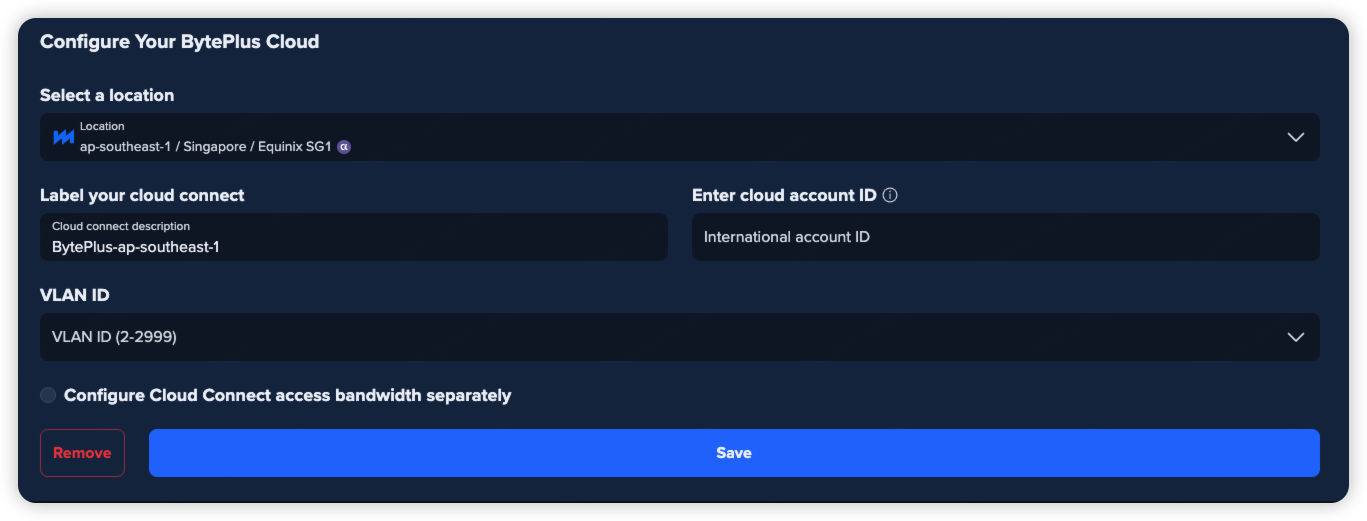

| BytePlus Cloud | Process 1 · Zenlayer pushes    | International account ID | 2–2999        | —                                                                  |
| Volcengine     | Process 1 · Zenlayer pushes    | Account ID               | 2–3499        | —                                                                  |

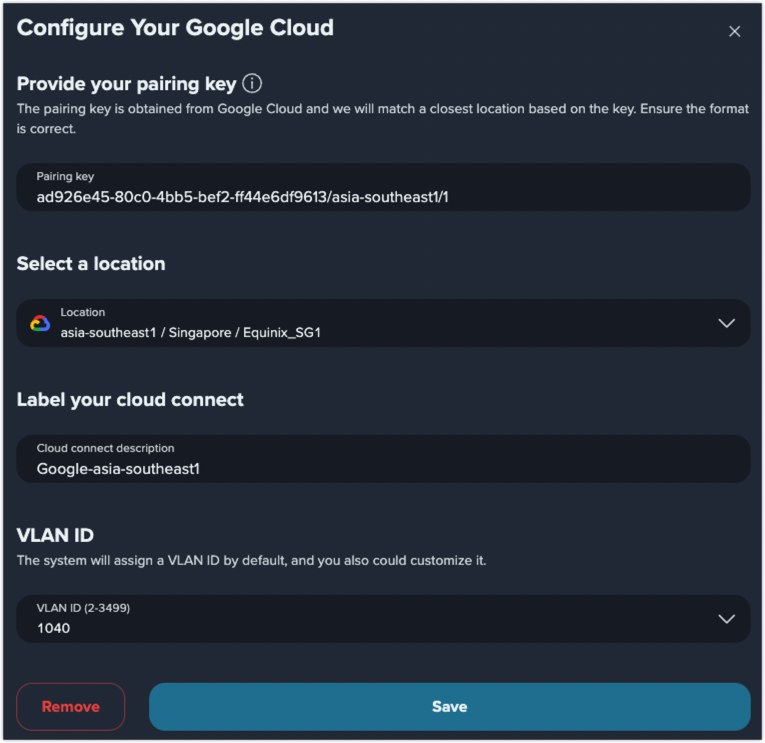

### Google Cloud pairing key

The [**pairing key**](https://cloud.google.com/network-connectivity/docs/interconnect/concepts/terminology#pairingkey) is generated by Google Cloud when you create the VLAN attachment. Zenlayer matches the nearest region from it, so make sure the format is correct. See [**Google Cloud Configuration**](https://docs.console.zenlayer.com/welcome/cloud-networking/get-started/validate-connection-in-public-cloud/google-cloud-configuration.md) for how to obtain it.

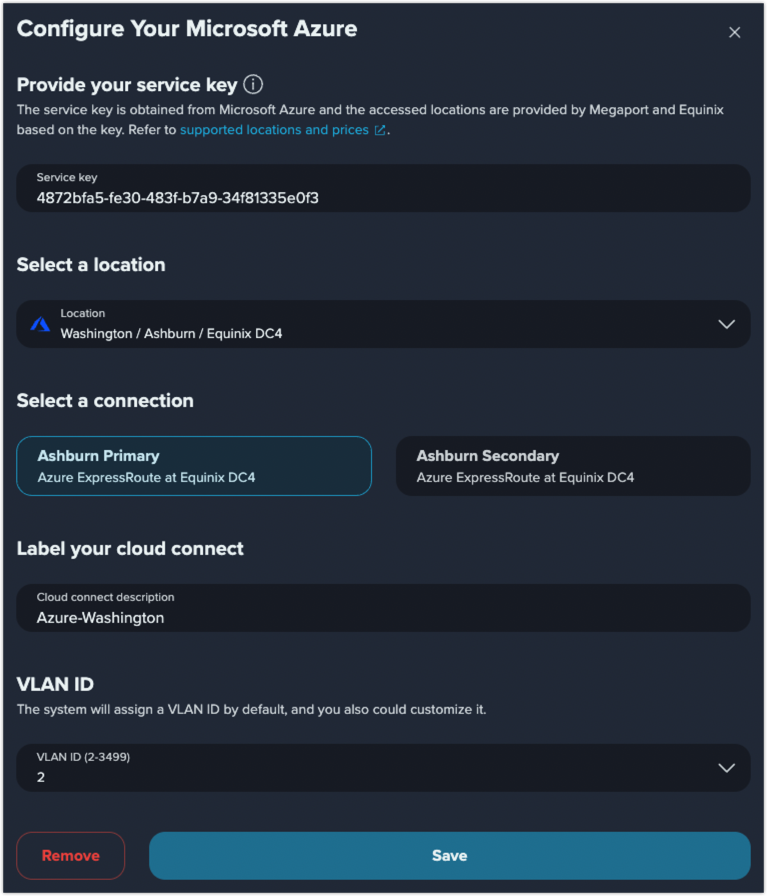

### Azure service key

The **service key** (s-key) is a standard GUID that uniquely identifies an ExpressRoute circuit, mapped one to one with the circuit and generated by Azure when the circuit is created. It is the only information exchanged between Zenlayer, Azure, and you — it is not a key used for security purposes. Zenlayer matches the nearest region from it, so make sure the format is correct. See [**Microsoft Azure Cloud Configuration**](https://docs.console.zenlayer.com/welcome/cloud-networking/get-started/validate-connection-in-public-cloud/microsoft-azure-cloud-configuration.md) for how to obtain it.

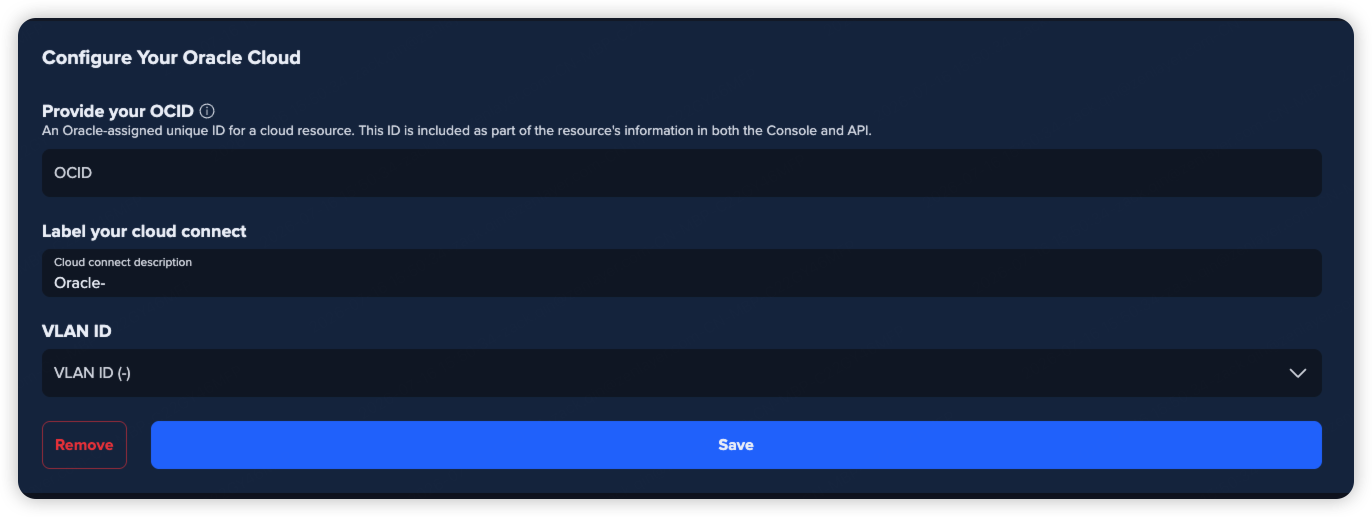

### Oracle Cloud OCID

The **OCID** (Oracle Cloud Identifier) is the unique ID Oracle assigns to a cloud resource, visible on the Oracle console and through the API. Create the resource on Oracle Cloud first to obtain the OCID, then enter it on zenConsole. See the Oracle documentation for the creation steps.

## What to Do Next

[**Validate your cloud connect**](https://docs.console.zenlayer.com/welcome/cloud-networking/get-started/validate-connection-in-public-cloud.md) on the corresponding console of your public cloud provider.
